ROUTER CONFIGURATION

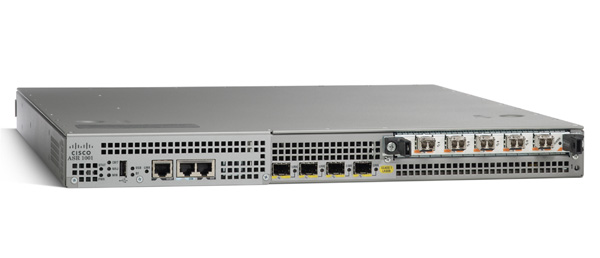

Cisco ASR 1001 Router
The Cisco ASR 1001 Router is part of the Cisco aggregation services family of routers. It offers a compact form factor router that satisfies customer demands such as low power consumption and decreased usage of rack space. The Cisco ASR 1001 Router has the route processor, embedded services processor, and SIP integrated within the chassis with one half-height SPA slot.
Activities performed in Computer Centre using Cisco ASR 1001
- The optical fiber OUT cable from BSNL Juniper Router is connect to Cisco ASR 1001 Router port for connecting Internet to the entire University Campus, for that Static Routing Protocol is configured in Cisco Router to Connect ISP.
- A NAT policy is a collection of rules that defines how a device should translate addresses. By using this policy single public address is converted into number private address using Class B based on Internet Protocol Address.
- Resolving network connectivity problem at the user end when it occurs.
General Specifications:
Product Description |
Cisco ASR 1001 – Router – Desktop |
RAM |
4 GB (installed) / 8 GB (max) |
Interfaces
|
Management : 1 x 10Base-T/100Base-TX – RJ-45
Management : 1 x Console – RJ-45
Management : 1 x Auxiliary – RJ-45
USB : 1 x 4 x SFP (mini-GBIC) |
Performance
|
Bandwidth : 2.5 Gbps
VPN throughput (IPSec) : 1.8 Gbps |
Features |
Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List support, Quality of Service |
Power |
AC 120/230 V ( 50/60 Hz ) |
Approximate Dimensions (WxDxH) |
17.3 in x 18.5 in x 1.7 in |
